Product Description
|
1. Air knife length can be customized: 0.2-3meters
|
|
2. Outlet : 0.1-0.3mm（customizable）
|
|
3.All stainless steel SUS304 or 316L material, acid and alkali resistance
|
|
4.According to the aerodynamic principle design, wind resistance is small, wind speed is average.
|
|
5.Pressure can be 5kgf / cm2, wind speed up to 400m / s, can blow hot air, temperature can be 250 ℃
|
|
6.can be used for drying water, isolated curtain,water curtain, etc., to reduce the cold / hot air loss
|
Advantages of stainless steel air knife
Manvac stainless steel air knife, this series of products has high precision, stronger hardness, higher pressure resistance and higher temperature resistance. It adopts German manufacturing technology and production equipment, and is very suitable for all kinds of air-flow drying systems and air-knife drying systems. It is widely used in ultrasonic cleaning of glass cleaning machine circuit boards, coating of non-ferrous metal plates/wires/sheets, and other industrial processes.
Details Images
It can be matched with Manvac high-speed centrifugal fan, and the high-pressure fan has higher matching degree and more flexible and convenient application.

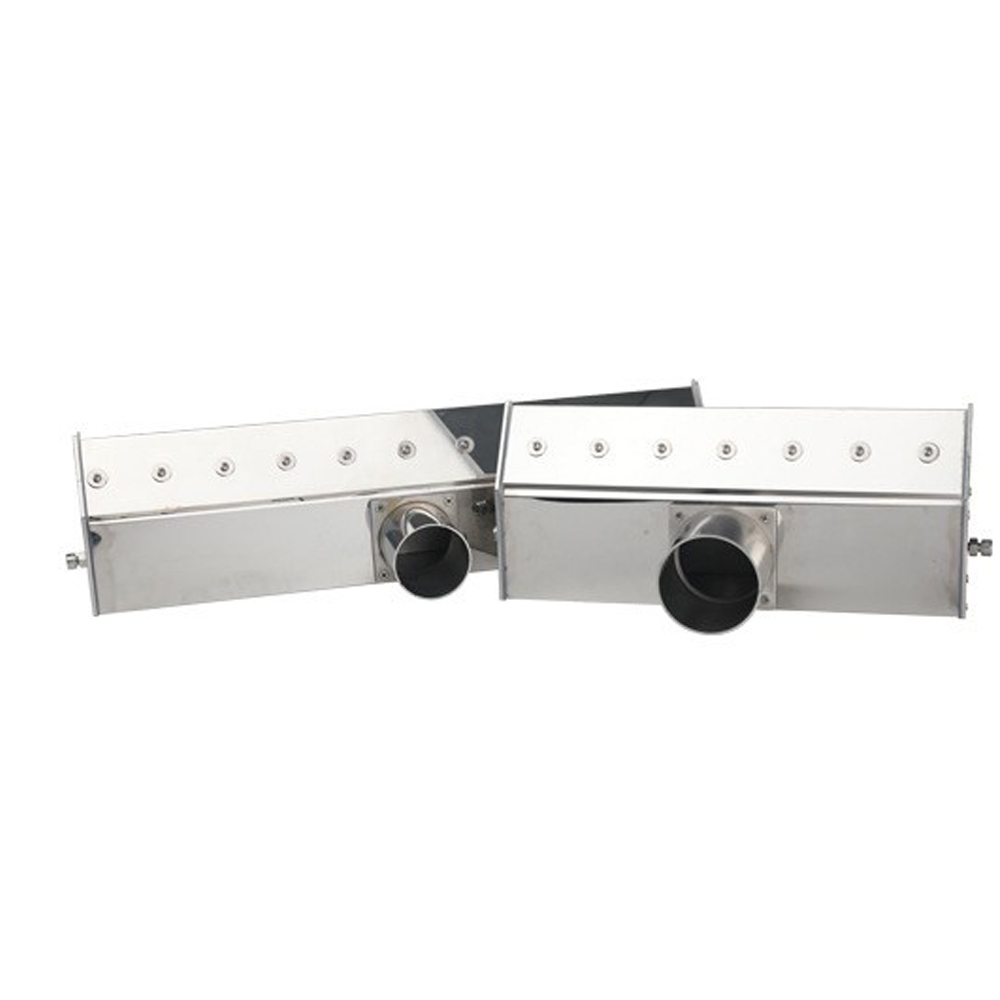

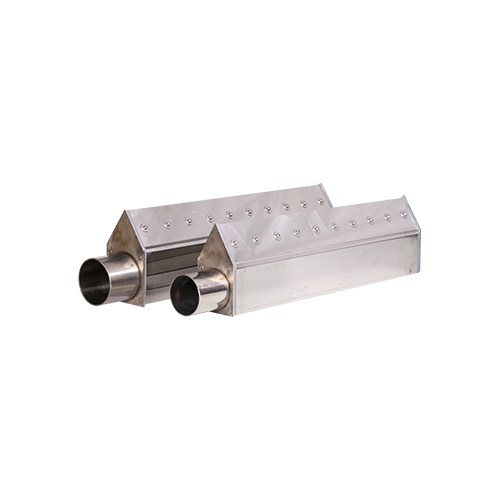

All-stainless steel sus304 or medical grade 316 stainless steel has stronger hardness and higher endurance.

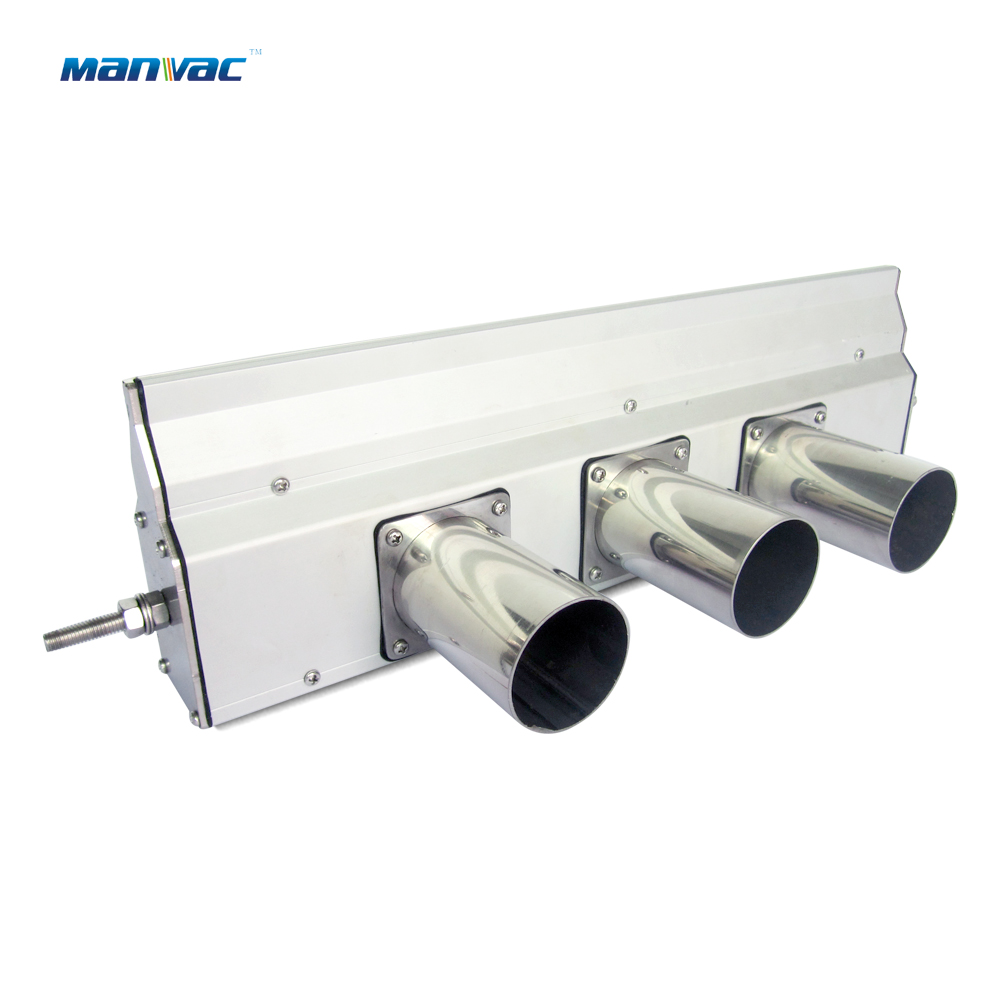

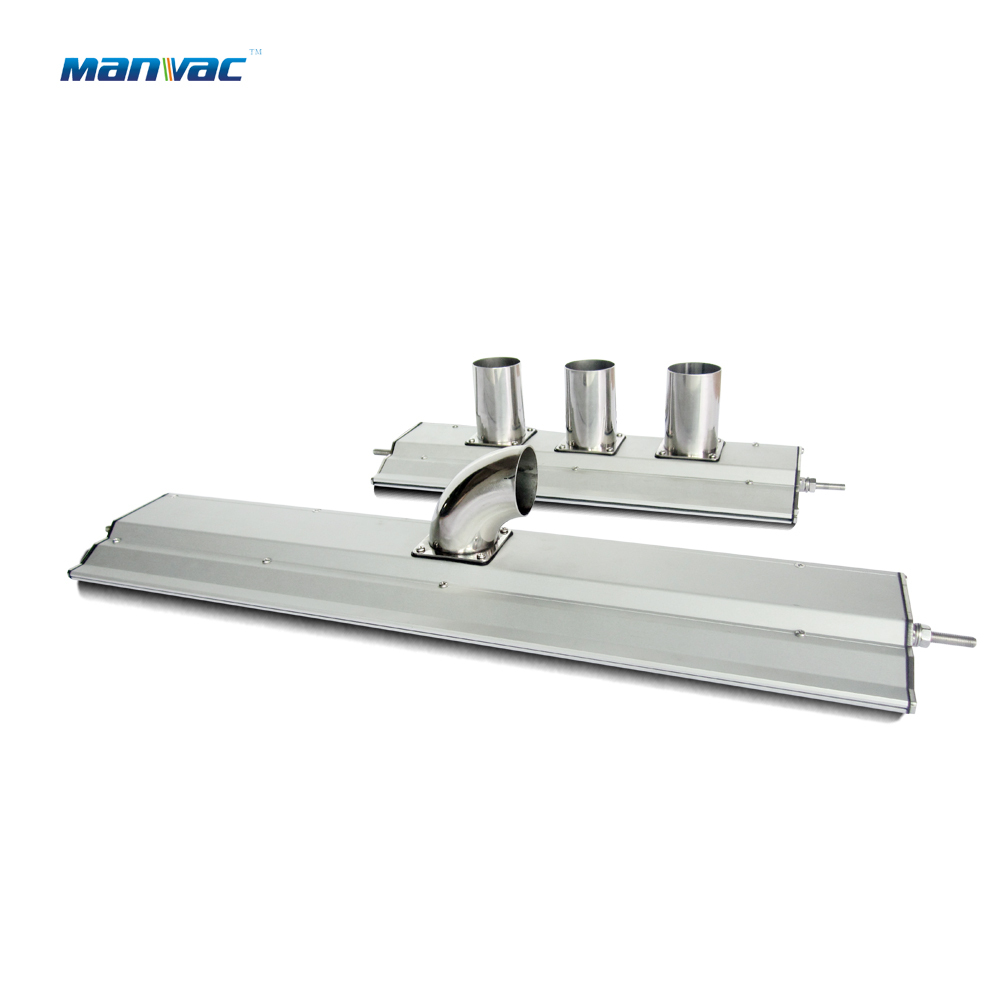

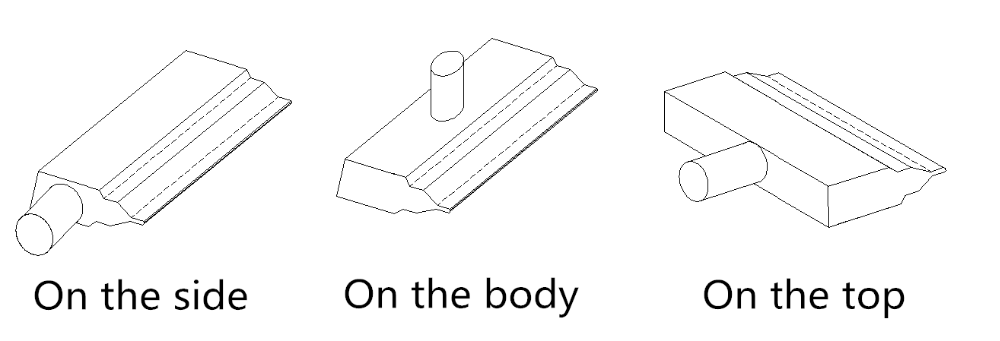

A variety of air inlet diameters and positions can be selected to meet the requirements of screw link or hose link and facilitate
installation.
installation.

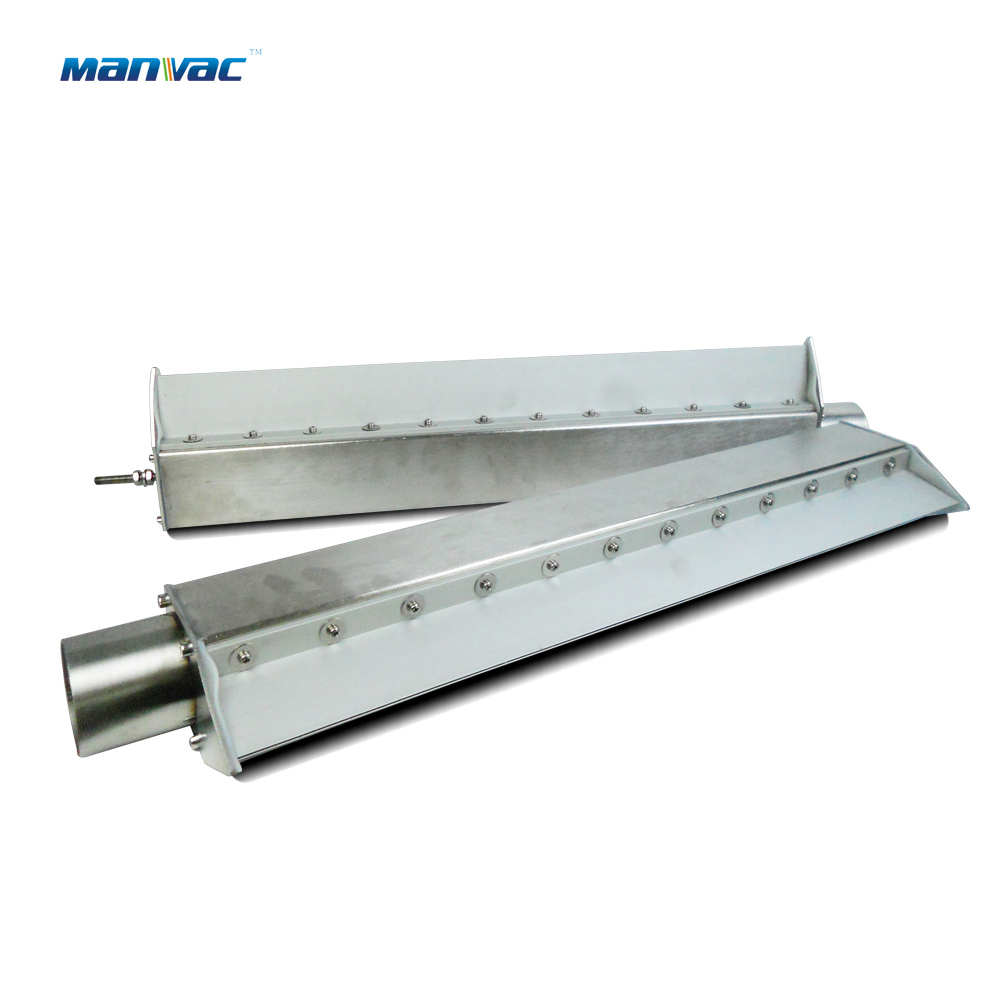

The unique design of the structure ensures that the wind resistance of the outlet is small, and the uniform error of wind speed can be reduced below 5%.
|

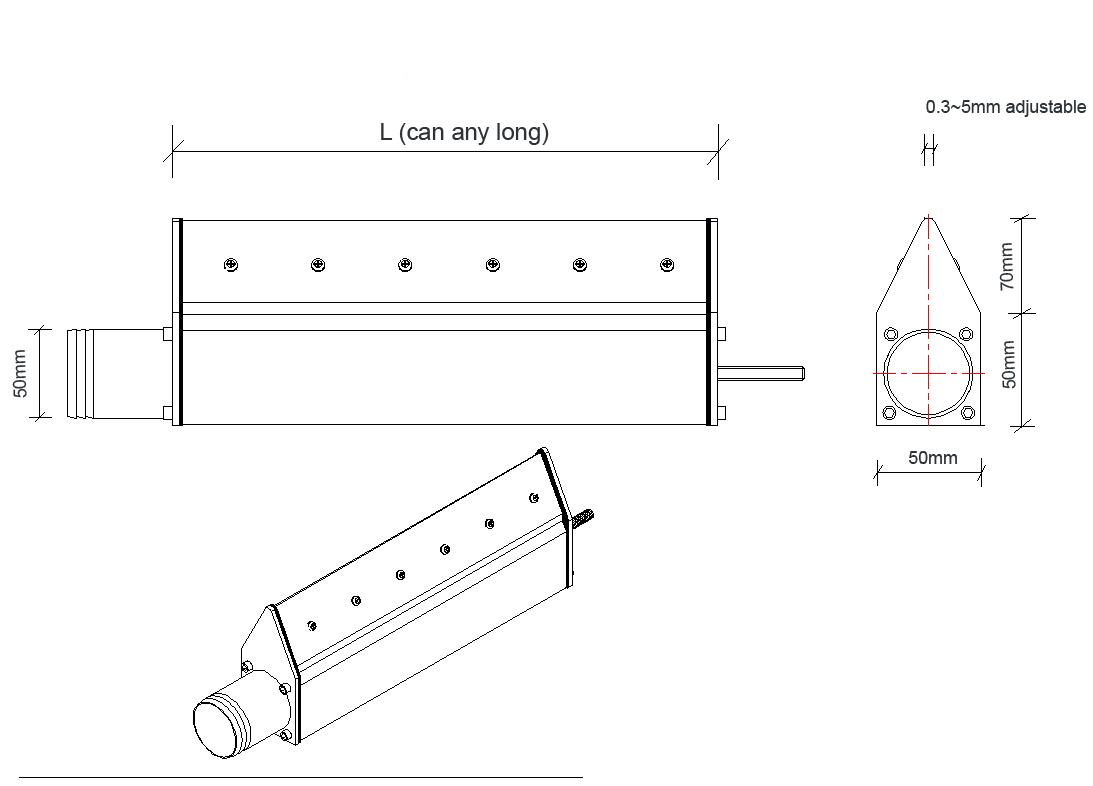

Model
|
Inlet(mm)
|
Outlet(mm)
|
Length(mm)
|
Length(inch)
|
|
SS304-300
|
50/63/75
|
0.1mm
|
300
|
12″
|
|
SS304-400
|
50/63/75
|
0.1mm
|
400
|
16“
|
|
SS304-450
|
50/63/75
|
0.1mm
|
450
|
18”
|
|
SS304-500
|
50/63/75
|
0.1mm
|
500
|
20“
|
|
SS304-600
|
50/63/75
|
0.1mm
|
600
|
24”
|
|
SS304-800
|
50/63/75
|
0.1mm
|
800
|
32“
|
|
SS304-1000
|
50/63/75
|
0.1mm
|
1000
|
40”
|
Product Usage
-
-
Product usage introduction
-
It can withstand the maximum wind speed of 400m/s, the maximum temperature resistance of 250°C and the maximum pressure resistance of 5kgf/cm2, and it can be used with Manvac blower. It is suitable for various industry。
-
Description of product use effec

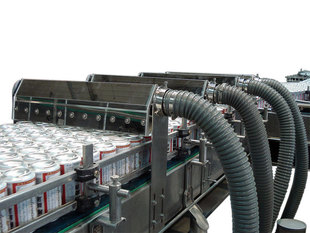

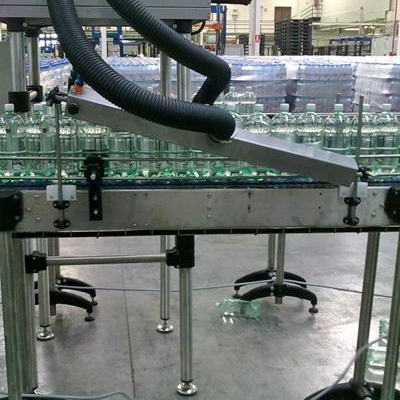

Using Manvac high-speed centrifugal blower and high-pressure blower can achieve very good results. The bottle is clean, waterless, ultra-low noise and ultra-low power consumption, which has been well received by many customers.
